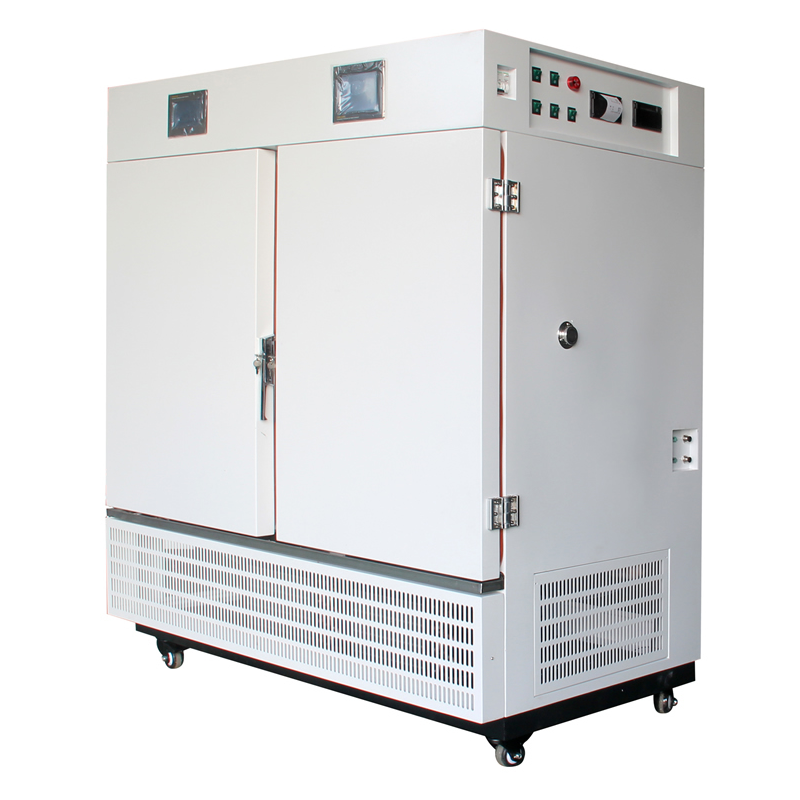

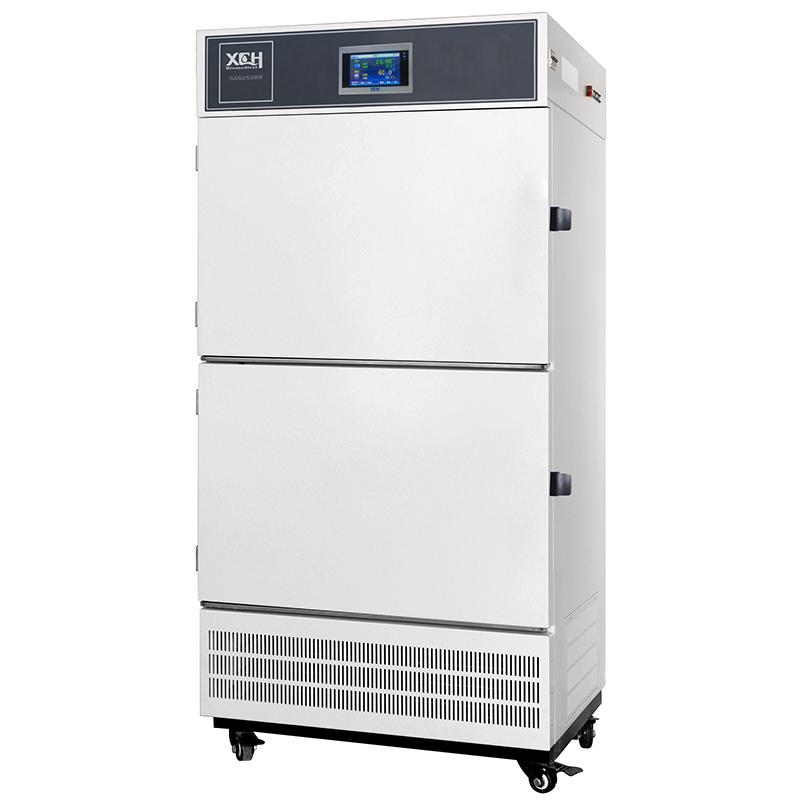

The Double Case Medicine Stability Testing Chamber, two chamber are independently controlled, CSD series, A box has temperature, the three functions of humidity and light can be equipped with near-ultraviolet lamps to meet the requirements of the guidelines for the stability test of the 2020 edition of the Pharmacopoeia; Box B only controls and records.
Model: 320SD~620SD/CSD
Temperature Range: 10~65℃
Temperature Fluctuation: ＜±0.5℃
Temperature deviation: ＜±2.0℃
Humidity Range: 20~95%RH
Humidity deviation: ＜ ±3%RH
Power: AC 220V±10% 50HZ
Environment temperature: +5 ～ 35℃
Item NO.:
320SD~620SD/CSDProduct Origin:
ChinaDouble Case Medicine Stability Testing Chamber
XCH Double Case Medicine Stability Testing Chamber, Two case independent control,CSD series, A Chamber has three functions: temperature, humidity and illumination. near ultraviolet lamp tube can be optional,Meet the requirements of the stability test guidelines of the 2020 edition of pharmacopoeia; B Chamber can only control and record temperature and humidity.
Key Features:
Specification:
Temperature Fluctuation ≤ ±0.5℃
Temperature Deviation ≤ ±1.0℃
Humidity Fluctuation ≤ ±3%RH
Humidity Deviation ≤ ±3%RH
Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃
CSD series: A with function of illumination, Illumination Range: 100 ～ 8000Lux,Near Ultraviolet Range: 0.84 ～ 5w / m2 ,Illuminance deviation: 4500±500Lux
Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.
Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance.
Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean
Refrigerating System: The imported fully enclosed industrial compressor, long-life, low noise
Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free
Control System: Two sets color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail
Illumination System: Equipped with illumination sensor,direct illumination display, equipped with illumination storage and printing system
Safety device:
Compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection.
Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply
Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.
Data Record: Equipped with data collection system conform to GMP requirements,Two sets Needle micro printer and USB output port as standard
Meet a criterion: Meet ICHQ1A(R2)、Q1B、Chinese Pharmacopoeia 2020 edition
SMS alarm: Optional
Stability chamber specification:
| MODEL | TEMP CONTROL RANGE(℃) |
HUMIDITY CONTROL RANGE |
CAPACITY(L) | INTER DIMEN W×D×H(mm) |
EXTER DIMEN W×D×H(mm) |
POWER(KW) | Shelf (Standard) |
Shelf (Standard) |
|
XCH-320SD |
10 ～ 65 |
20 ～ 95% |
150 |
680×500×460 |
840×840×1880 |
2.5 | 2 |
Up |
|
10 ～ 65 |
20 ～ 95% |
150 |
680×500×460 |
2.5 |
2 |
Down |
||
|
XCH-520SD |
10 ～ 65 |
20 ～ 95% |
250 |
600×500×830 |
1560×870×1650 |
3.0 |
3 | Up |
|
10 ～ 65 |
20 ～ 95% |
250 |
600×500×830 |
3.0 |
3 | Down | ||
|
XCH-620SD |
10 ～ 65 |
20 ～ 95% |
300 |
600×500×1000 |
1560×870×1820 |
3.2 |
3 | Left |
|
10 ～ 65 |
20 ～ 95% |
300 |
600×500×1000 |
1560×870×1820 |
3 | Right | ||
| Double chamber, independent control | ||||||||
| MODEL | TEMP CONTROL RANGE(℃) |
HUMIDITY CONTROL RANGE |
CAPACITY(L) | INTER DIMEN W×D×H(mm) |
EXTER DIMEN W×D×H(mm) |
POWER | Shelf (Standard) |
Shelf (Standard) |
|
XCH-320CSD |
15 ～ 65 |
20 ～ 95% |
150 |
680×500×460 |
840×840×1880 |
2.5 | 2 |
Up |
|
150 |
680×500×460 |
2.5 |
2 |
Down |
||||
|
XCH-520CSD |
15 ～ 65 |
20 ～ 95% |
250 |
600×500×830 |
1560×870×1650 |
3.0 |
3 | Up |
| 250 |
600×500×830 |
1560×870×1650 |
3 |
Down | ||||
|
XCH-620CSD |
15 ～ 65 |
20 ～ 95% |
300 | 600×500×1000 | 1560×870×1820 | 3.2 | 3 | Left |
|
600×500×1000 |
1560×870×1820 |
3 |
Right | |||||
|
|
Double chamber, independent control | |||||||
Remark:
CSD series A equipped with temperature, humidity, visible light and NUV light four functions,Illumination measurement standard with visible and near ultraviolet sensors.Visible and near ultraviolet values are automatically printed and stored;Visible Range: 100 ～ 8000Lux，4500±500Lux，The total illumination of the light test shall not be less than 1.2×106 Lux·hr Near ultraviolet range: 0.84 ～ 5w/m2，Near ultraviolet energy shall not be less than 200w·hr/m2
Advantages:
Sensitive, small system error
Two boxes of independent control
No pollution source and is easy to clean
Low cost
