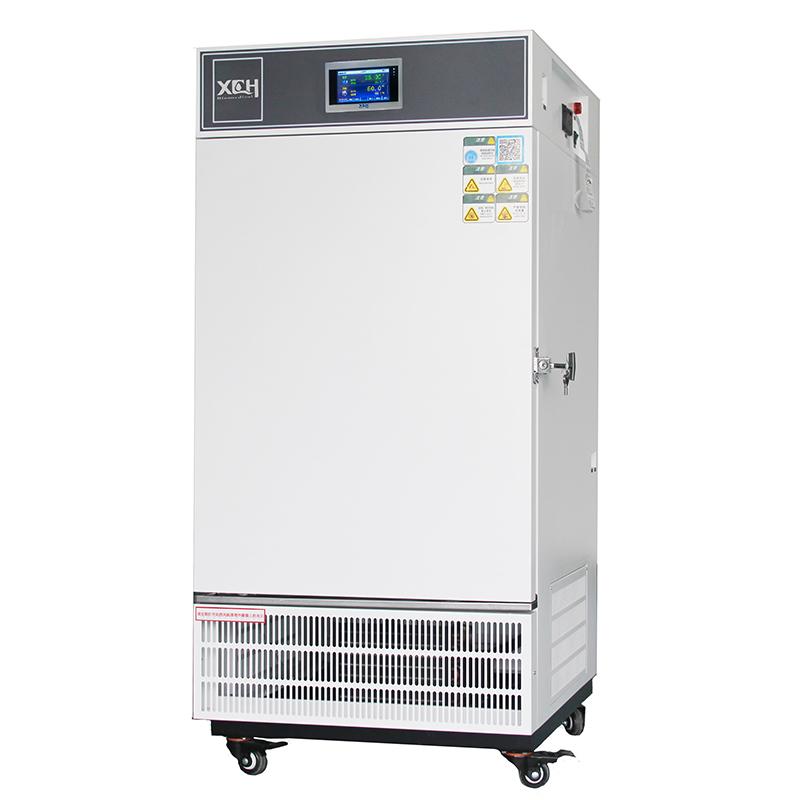

Medicine Stability Test Chamber

The single door medicine drug stability environmental testing chamber, using advanced high-quality components and manufacturing technology, stable and reliable performance, suitable for GMP certified users. Creates a temperature, humidity, light environment for drug stability evaluation. Suitable for accelerated testing, long-term testing, wet test, and strong light irradiation test.


Model: 150SD~500SD-2

Capacity: 150L~500L

TEMP Range: 10~65℃

Fluctuation: <±0.5℃
Deviation:<±1.0℃
Humidity Range: 20~95%
Fluctuation: <±3.0%RH

Devitation<±3.0%RH
Environment temperature: +5 ~ 35℃


  • Item NO.:

    150SD~500SD-2
  • Product Origin:

    China
  • Product Detail

Medicine Stability Test Chamber


XCH SD series Medicine Stability Test Chamber is the best choice for pharmaceutical companies to conduct drug stability experiments for pharmaceutical companies to create drug failure evaluations that require long-term stable temperature, humidity and light environment for accelerated testing of drugs and new drugs. Long-term tests and glare experiments for humidity tests are the best choice for pharmaceutical companies to conduct drug stability experiments. The necessary equipment to obtain GMP certification.


Product Produce:


Specifications:

Temperature Fluctuation ≤ ±0.5℃

Temperature Deviation ≤ ±1.0℃

Installed Power: AC220V±10% 50HZ


Environment temperature: +5~35℃


Structure Design:


Adopt the latest airduct system design achieves good uniform of temperature and humidiy form different parts inside the chamber.


Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.


Refrigerating System: Two sets original imported fully enclosed industrial compressor, high efficiency, low noise, ensure the long-term continuous operation of equipment.


Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free.


Control System: Color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail.

SMS alarm: Optional


Safety Device

Compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection.


Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply;


Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard.


Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.


Meet a criterion: Meet ICHQ1A(R2)、Chinese Pharmacopoeia 2020 edition.


Stability Chamber Specification:

MODEL

TEMP RANGE

Humidity

RANGE

CAPACITY

INTERNAL DIMEN(mm)

W×D×H

EXTERNAL DIMEN(mm)

W×D×H

POWER

SHELF(Standard)

XCH-150SD-2

10~65℃

20 ~ 95%

150L

 600×405×630

760×830×1500

1.2KW

3

XCH-250SD-2

10~65℃

20 ~ 95%

250L

 600×500×830

620×690×1650

1.5KW

3

XCH-400SD-2

10~65℃

20 ~ 95%

400L

 600×700×950

760×1060×1750

2.0KW

3

XCH-500SD-2

10~65℃

20 ~ 95%

500L

 680×680×1080

 840×1050×1850

2.2KW

4




Application:

Medicine Stability Testing Chamber apply to investigate the stability of drug substances and preparations, suitable for GMP and CGMP certified users.
