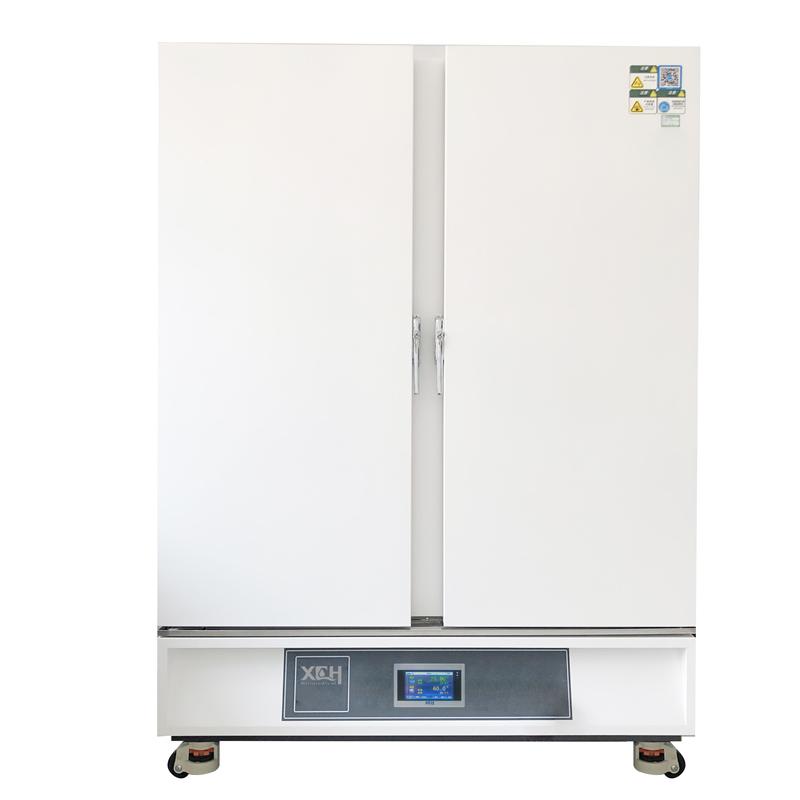

Double Door Medicing Stability Test Chamber

The Double Door Medicing Stability Test Chamber, using imported high-quality components and manufacturing technology, stable and reliable performance, suitable GMP certified users


Model: 800SD~3000SD-2

TEMP Range:10~65℃

TEMP Fluctuation: <±0.5℃

TEMP Deviation: < ±1.0℃
Humidity Range: 20 ~ 95%
Humidity Deviation:< ±3%RH
Capacity: 800L~3000L
Environment temperature: +5 ~ 35℃

  • Item NO.:

    800SD~3000SD-2
  • Product Origin:

    China
  • Product Detail

Double Door Medicing Stability Test Chamber


The Double Door Medicing Stability Test Chamber. Provide long-term stable temperature, humidity and light environment to detect the expiration date of drugs, used for long-term test, accelerated test, high humidity test, strong light irradiation test and drug stability test. Used to the pharmaceutical industry, medicine, biotechnology, food industry, electronics and all related fields including life sciences. Through scientific methods, long-term stable temperature and humidity conditions for drug failure evaluation are created.


Key Features:


Specification:

Temperature Fluctuation < ±0.5℃

Temperature Deviation < ±1.0℃
Humidity Fluctuation ≤ ±3%RH

Humidity Deviation ≤ ±3%RH

Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃


Structure Design:

Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber

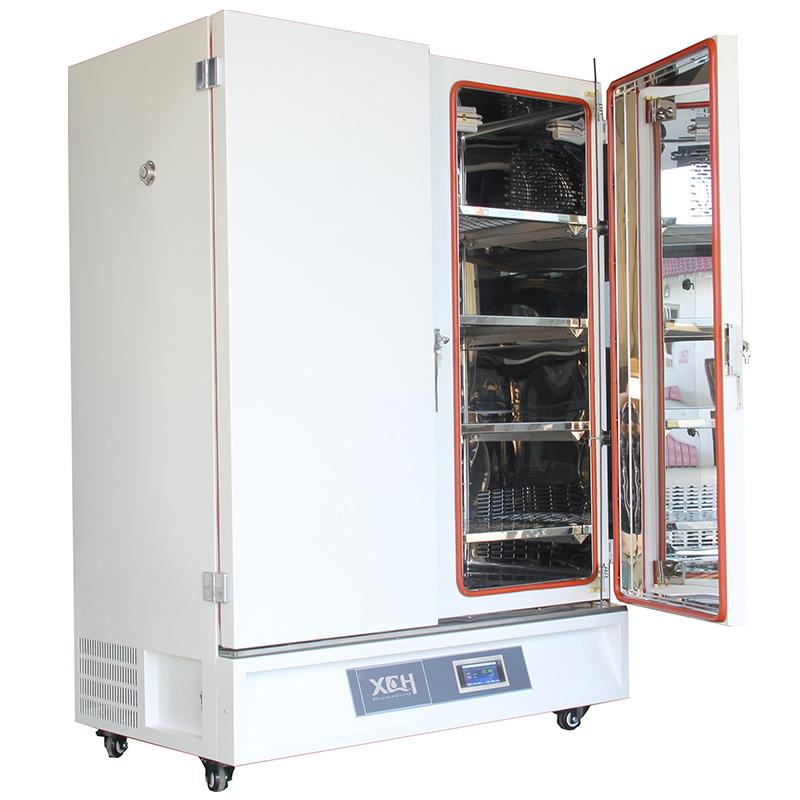

Double door structure: Only open a single door when sampling and lofting to minimize temperature and humidity impact


Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance


Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean


Refrigeration System: Two sets imported brand fully enclosed compressor,long-life,low noise


Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free


Control System: Color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail


Meet a criterion : Meet ICHQ1A(R2)、Chinese Pharmacopoeia 2020 edition


Safety Device:

Compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection.


Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply


Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard


Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm


SMS alarm: Optional


Model & Parameters:

MODEL

TEMP RANGE

Humidity

RANGE

CAPACITY(L)

INTERNAL DIMEN(mm)

W×D×H

EXTERNAL DIMEN(mm)

W×D×H

POWER(KW)

Shelf (Standard)

XCH-800SD-2

10~65℃

20 ~ 95%

800

1200×490×1360

1360×850×1960

2.5

4

XCH-1000SD-2

10~65℃

20 ~ 95%

1000

1400×510×1400

1550×870×1980

3.0

4

XCH-2000SD-2

10~65℃

20 ~ 95%

2000

1500×970×1370

1720×1400×1980

3.5

4

XCH-3000SD-2
10~65℃
20 ~ 95%
3000
1600×1350×1370
1750×1780×2080
3.8
4

Double compressor


Advantages:

High performance, low noise
High sensitivity, low annual drift

User friendly design
No pollution source
