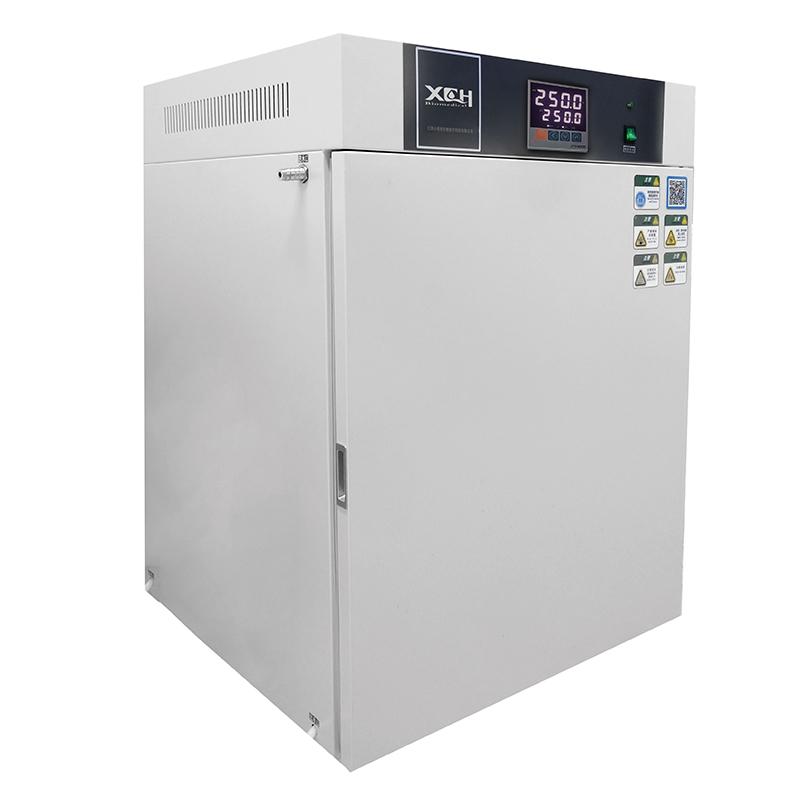

Water jacketed thermostatic incubator

9050GHP~9270GHP are supported by XCH Biomedical's advanced technology, which is the most energy-efficient and also the most powerful cooling incubator in its class. Used for storing bacteria and biological culture for colleges, universities, medicine, and biological scientific research departments. Compared with similar appliances, its heating, cooling and recovery time is much shorter.


Model: 9050GHP~9270GHP
Environment temperature: +5 ~ 30℃
Temperature Fluctuation ≤ ±0.3℃
Temperature Uniformity ≤ ±0.5℃(@37℃)
Timing Range: 1-9999min
Power: AC 220V±10% 50HZ
Optional: printer or RS485 interface

  • Item NO.:

    9050GHP~9270GHP
  • Product Origin:

    China
  • Product Detail

Water Jacketed Thermostatic Incubator


Necessary equipment in scientific research laboratories for storing bacteria and biological culture in colleges and universities, medical and biological research departments, and can be equipped with ultraviolet sterilization system to sterilize the inside of the cabinet regularly, effectively killing the floating bacteria in the circulating air in the cabinet, so as to effectively prevent the pollution during cell culture.


Key Features:


• Water jacket insulation design, small temperature fluctuation, good uniformity.
• Liner is stainless steel material, four corners half circle arc over plating, shelf can be free loading and unloading.
• With built-in glass door, it is convenient to observe the changes of culture directly
• Temperature Fluctuation ≤ ±0.3℃ ,Temperature Uniformity ≤ ±0.5℃(@37℃)
• Timing Range: 1-9999min
• Power: AC 220V±10% 50HZ
• Optional : printer or RS485 interface



XCH Biomedical Thermostatic Incubator offers unique advantages:


High precision, small temperature fluctuation

Good uniformity

High temperature resistance

Good insulation, low cost



Main Application:


Necessary equipment in scientific research laboratories for storing bacteria and biological culture in colleges and universities,medical and biological research departments, and can be equipped with ultraviolet sterilization system to sterilize the inside of the cabinet regularly, effectively killing the floating bacteria in the circulating air in the cabinet, so as to effectively prevent the pollution during cell culture.


Model & Parameters:


MODEL TEMP RANGE CAPACITY INTER DIMEN
W×D×H
EXTER DIMEN
W×D×H
POWER TRAYS
XCH-9050GHP RT+5℃ ~ 65℃ 50L 350×350×410(mm) 500×500×700(mm) 0.4KW 2
XCH-9080GHP RT+5℃ ~ 65℃ 80L 400×400×500(mm) 550×550×800(mm) 0.6KW 2
XCH-9160GHP RT+5℃ ~ 65℃ 160L 500×500×650(mm) 650×640×950(mm) 0.8KW 2
XCH-9270GHP RT+5℃ ~ 65℃ 270L 600×600×750(mm) 750×740×1050(mm) 1.3KW 2

Want to know about this product?

SEND A MESSAGE

If you are interested in our products and want to know more details, please leave a message here,we will reply you as soon as we can.
