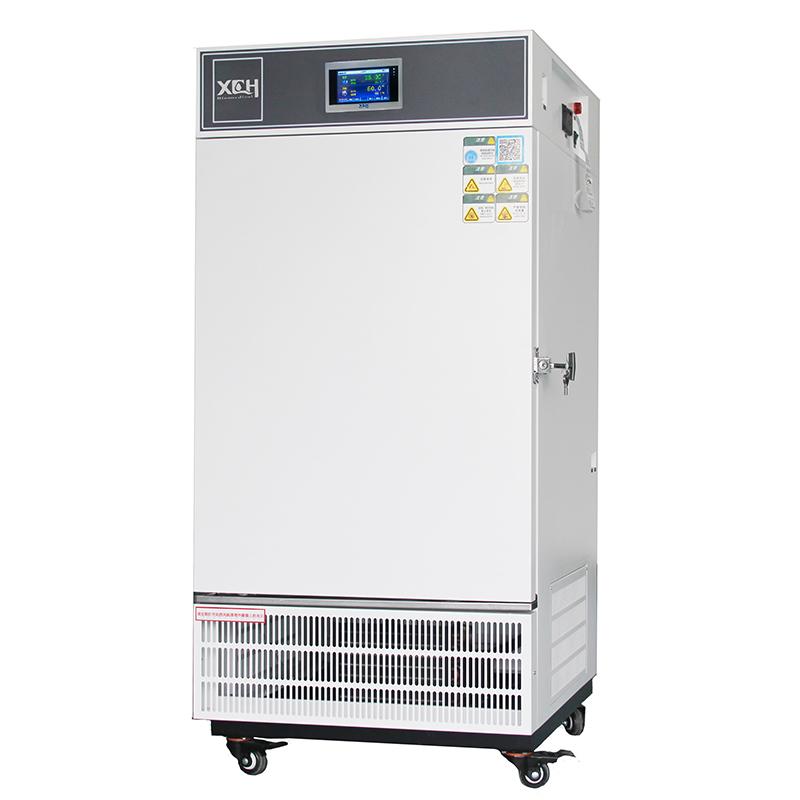

Comprehensive pharmaceutical stability test chamber

The Comprehensive pharmaceutical stability test chamber designed and manufactured in accordance with the guidelines for drug stability testing in Appendix XIX C of the Chinese Pharmacopoeia and GB/T10586-89. The long-term stable working temperature, humidity, and light environment required for scientific simulation of drug failure evaluation are essential equipment for pharmaceutical companies to pass GMP certification.


Model: 150CSD~500CSD-2

Capacity: 150L~500L

TEMP Range: 10~65℃
Fluctuation: <±0.5℃
Deviation:<±1.0℃


  • Item NO.:

    150CSD-2~500CSD-2
  • Product Origin:

    China
  • Product Detail

Comprehensive pharmaceutical stability test chamber


The Pharmaceutical stability test chamber is suitable for Pharmaceutical stability testing and verification of new drugs and new drugs by pharmaceutical companies and drug research institutes, Can control temperature, humidity, visible light, near ultraviolet,suitable for GMP and CGMP certified users.Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard.


Key Features:


Specification:

Temperature Fluctuation < ±0.5℃

Temperature Deviation< ±1.0℃

Humidity Fluctuation ≤ ±3%RH

Humidity Deviation ≤ ±3%RH

Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃


Features:

Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.


Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance.

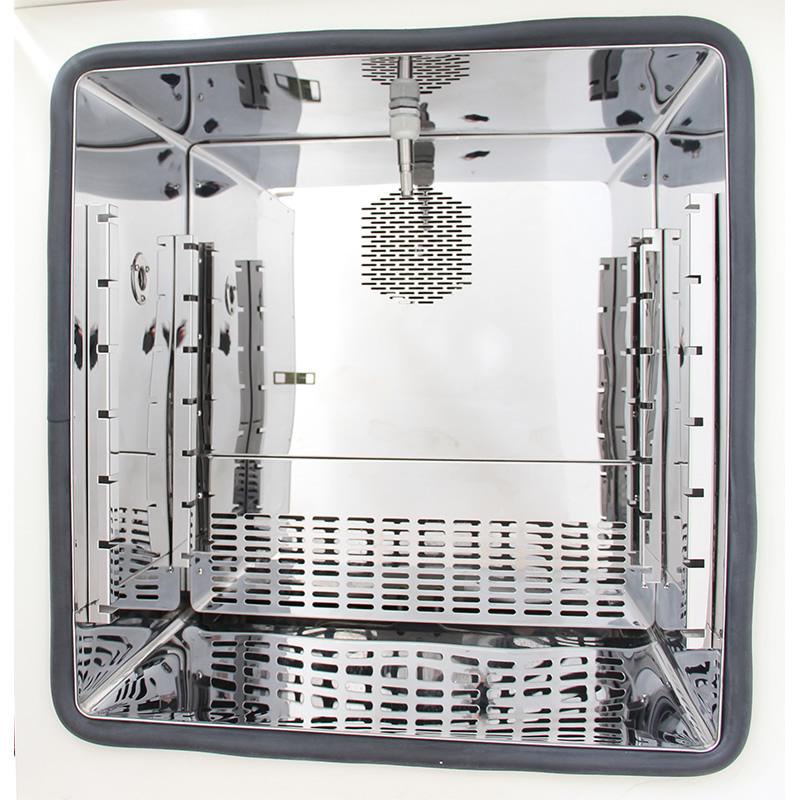

Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.


Refrigeration System: Two sets imported brand fully enclosed compressor,longlife,low noise


Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free.


Control System: Color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail.


Safety device:

Compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection


Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply


Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard.


Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.


SMS alarm: Optional


Meet a criterion:

Meet ICHQ1A(R2)、Chinese Pharmacopoeia 2020 edition.


Pharmaceutical Stability Chamber Specification:

MODEL

TEMP RANGE(℃)

Humidity

RANGE

CAPACITY(L)

INTERNAL DIMEN(mm)

W×D×H

EXTERNAL DIMEN(mm)

W×D×H

POWER(KW)

SHELF(Standard)

XCH-150CSD-2

15~65

20 ~ 95%

150

 600×405×630

760×830×1500

1.2

3

XCH-250CSD-2

15~65

20 ~ 95%

250

 600×500×830

620×690×1650

1.5

3

XCH-400CSD-2

15~65

20 ~ 95%

400

 600×700×950

760×1060×1750

2.0

3

XCH-500CSD-2

15~65

20 ~ 95%

500

 680×680×1080

 840×1050×1850

2.2

4

Remark:

CSD series is comprehensive medicine stability testing chamber equip with temperature、humidity、visible light、near ultraviolet function, Illuminance measurement standard with visible and near ultraviolet sensors,visible and near ultraviolet values are automatically printed and stored;Visible Range: 100 ~ 8000Lux,Automatic display,automatic setting,automatic adjustment,The total illumination of the light test shall not be less than 1.2×106 Lux·hr Near ultraviolet range: 0.84 ~ 5w/m2,Automatic display,automatic setting, automatic adjustment; Near ultraviolet energy shall not be less than 200w·hr/m
