As a pioneer in pharmaceutical refrigerator manufacturing, every case of avoiding a drug or vaccine infection improves patient safety and saves you hassle and money.
Model: 250BC~2000BC
Temperature Fluctuation ≤ ±1℃
Temperature Deviation ≤ ±2.0℃
Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃
Optional: Data storage and printing.SMS Alarm(With power off alarm)
Item NO.:
250BC~2000BCProduct Origin:
ChinaBiomedical Pharmaceutical Vaccine Refrigerator
Biomedical Pharmaceutical Vaccine Refrigerator by cooling system, digital temperature control system, air circulation system, temperature sensor, etc. It is a professional refrigerating equipment for medicine refrigeration，Especially be used to store biological products, vaccines, reagents etc，Applying to pharmaceutical factories and all kinds of laboratories, etc.
Key Features:
Product Parameter
Temperature Fluctuation ≤ ±1℃
Temperature Deviation ≤ ±2.0℃
Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃
Optional: Data storage and printing.SMS Alarm(With power off alarm)
Humanized Design
Adjustable shelf structure design，Flexible access items，High space utilization.
Equipped with independent door lock，Convenient management by specially person.
Self - locking adjustable foot design，Easy to move and fix the instrument.
Structure System
Adopt the latest efficient airway system, better uniformity.
Inner wall material is stainless steel, The out shell is plastic sprayed steel plate.
Polyurethane integral foam, good insulation performance, more energy saving.
Safety System
Multi-protection : Compressor overheating, overpressure, overload protection and fan overheating protection.
Multi-Alarm: Perfect sound and light alarm system,Article reserves more safety
Refrigeration System
The imported brand fully enclosed compressor, long-term use, stable performance
Fluorine-free environmental refrigerant, Microchannel heat transfer technology, High efficiency，Greatly reduce energy consumption.
Germany famous brand EBM fan, Reliable performance.
Control System
High precision microcomputer temperature control system, High sensitivity temperature sensor is built into the chamber, Ensure stable internal temperature.
Whole machine optimized design, Lower noise.
Model & Parameters:
| MODEL | TEMP RANGE | CAPACITY | INTERNAL DIMEN (mm) | EXTERNAL DIMEN W×D×H (mm) |
POWER | TRAY |
| XCH-250BC | 2 - 8℃ | 250L | 600×500×830 | 760×870×1650 | 0.6KW | 3 |
| XCH-400BC | 2 - 8℃ | 400L | 600×700×950 | 760×1060×1750 | 0.8KW | 3 |
| XCH-500BC | 2 - 8℃ | 500L | 680×680×1070 | 840×1050×1850 | 1.0KW | 4 |
| XCH-800BC | 2 - 8℃ | 800L | 1200×490×1360 | 1360×850×1960 | 1.2KW | 4 |
|
XCH-1000BC |
2 - 8℃ |
1000L |
1400×510×1400 |
1560×870×1980 |
1.5KW | 4 |
|
XCH-2000BC |
2 - 8℃ |
2000L |
1500×970×1380 |
1670×1340×1990 |
2.0KW | 4 |
|

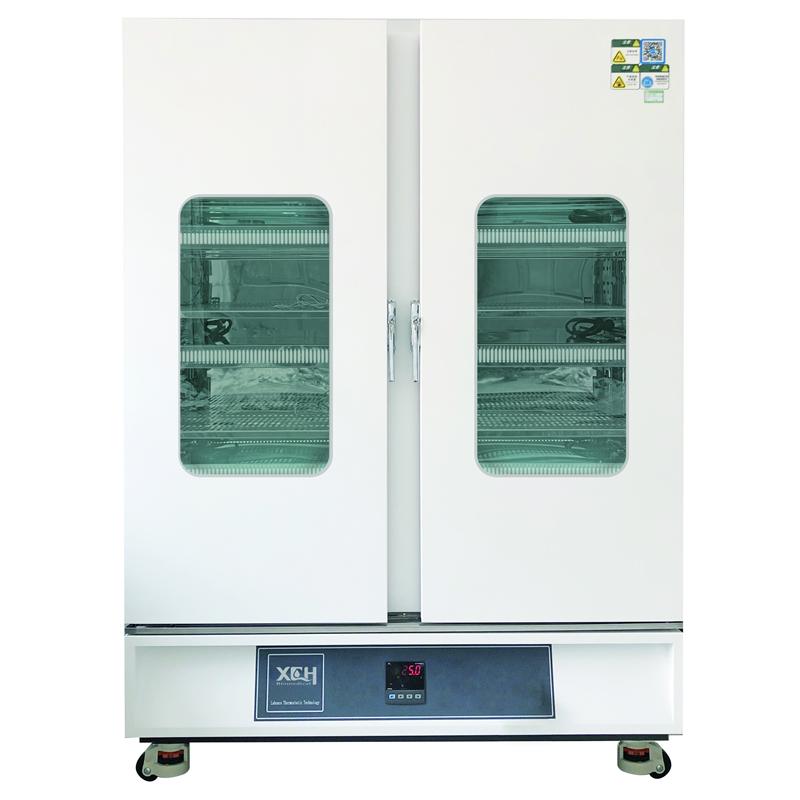

250BC,400BC,500BC are single door,800BC,1000BC,2000BC are double door. |
||||||
Advantages:
Data storage and printing function
Safety and easy to clean
High precision temperature control
Competitive price
