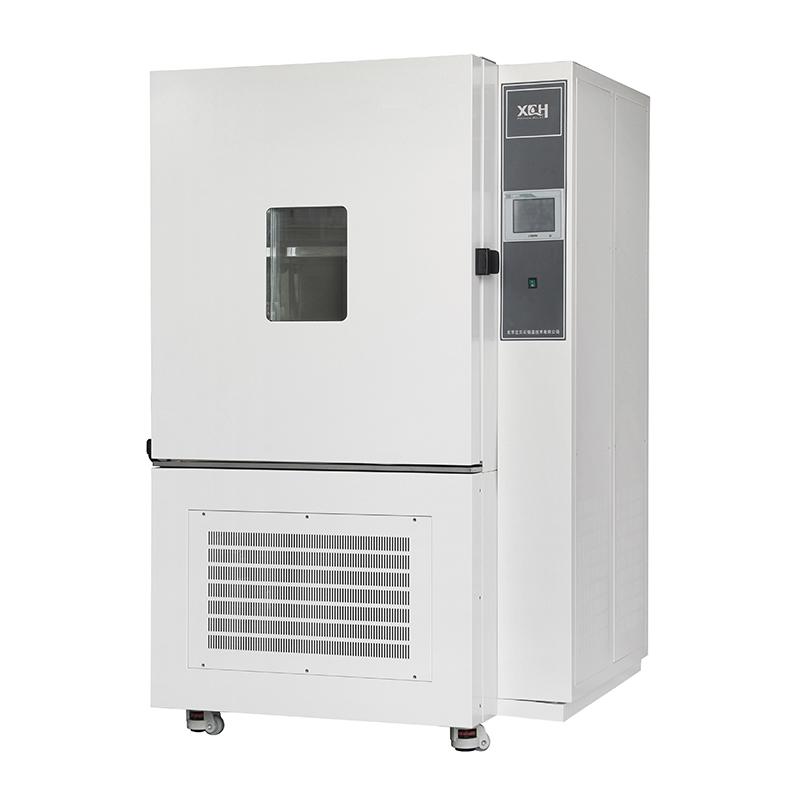

Alternating High and Low Temperature Test Chamber

XCH JSB Alternating High and Low Temperature Test Chamber is with wide range of temperature controls, mainly used to test performances of materials after in high temperature, low temperature, constant temperature or temperature alternating. It is one of the essential test equipments for medical aerospace, automotive, home appliances, scientific research department.


Model: 100JSB-1000JSB

TEMP Range: -40-150

Installed Power: AC220V±10% 50HZ

Environment temperature: +5~35℃

  • Item NO.:

    100JSB-1000JSB
  • Product Origin:

    China
  • Product Detail

Alternating High and Low Temperature Test Chamber


XCH JSB Series Alternating High and Low Temperature Test Chamber suitable for electrical and electronic products, aerospace products, auto parts, various electronic components in high temperature, low temperature, humid and hot environment storage, transportation and use of the adaptability test, through the test and detection, so as to judge whether the performance of the product meets the design requirements for testing.


Key Features:


Specifications:

Temperature Fluctuation < ±0.5℃

Temperature Deviation < ±2.0℃

Humidity deviation < ±3%RH(Humidity deviation > 75%RH)

Humidity deviation< ±5%RH(Humidity deviation ≤ 75%RH)

Heating Rising Rate: 1 ~ 3℃ /Min

Cooling Fall Rate: 0.7 ~ 1℃ /Min

Installed Power: AC220V±10% 50HZ

Environment temperature: +5~35℃


Structure & Material:


Airduct System: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber


Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304


Refrigeration System: The imported fully enclosed industrial compressor, high efficiency, low noise, stable continuous operation


Control system: Programmable chromatic touch screen controller,With multi - segment program and constant value function


Data management: With electronic data storage function,Data can be exported by USB flash drive


Safety Device:

Compres or overheat protection and overload protection

Fan overheating protection

Temperature upper and lower limit deviation alarm

Independent


Test Chamber  specification:

Model(XCH)
TEMP Range ( ℃ )
HUMI Range (RH)
Capacity (L)
INTR DIM(mm) W×D×H
EXT DIM(mm) W×D×H
Shelf (Standard)
XCH-100JSB
40 ~ 150
20 ~ 98%
100 450×450×500
800×900×1700
2
XCH-250JSB
40 ~ 150
20 ~ 98%
250 600×600×700
1100×1000×1900
2
XCH-500JSB
40 ~ 150
20 ~ 98%
500 800×700×900
1280×1180×2000
3
XCH-1000JSB
40 ~ 150
20 ~ 98%
1000 1000×1000×1000
1500×1500×2200
4

Remark: Different temperature and humidity range can be customized.
