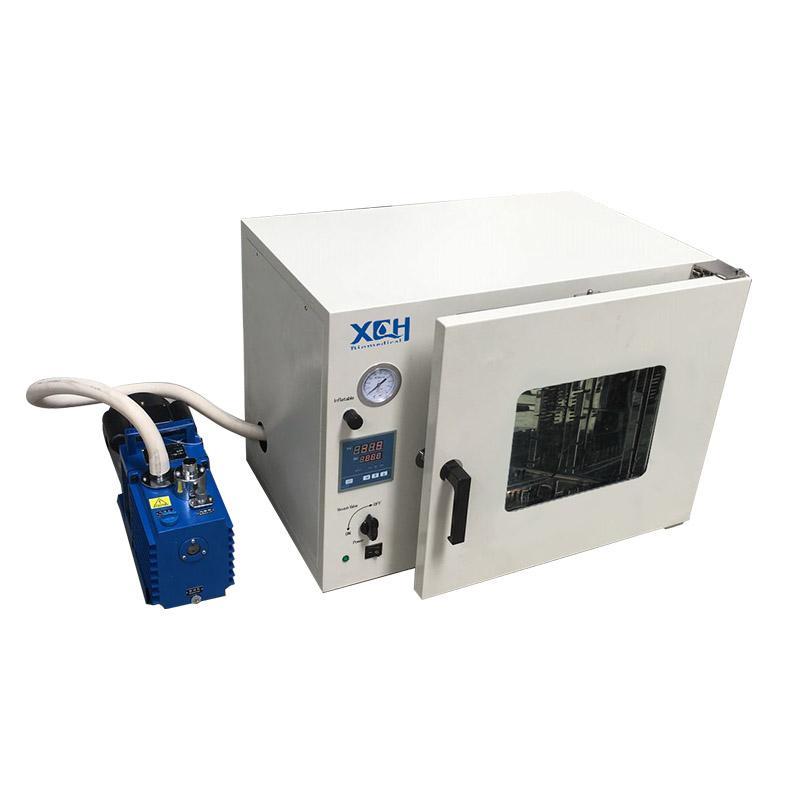

Industrial Laboratory Vacuum Drying Oven

XCH high precision vacuum drying oven are Professional Supplier Digital Vacuum Drying Oven , Vacuum Drying Machine , Vacuum Drying Cabinet Best Quality


Model: 6050ZK-6500ZK

Environment Temperature: +5 ~ 35℃
Temperature Fluctuation: ±1.0℃

Temperature Accuracy: ±0.1℃

Power: AC 220V±10% 50HZ

Vacuum Degree: vacuum indicator display

  • Item NO.:

    6050ZK-6500ZK
  • Product Origin:

    China
  • Product Detail

Industrial Laboratory Vacuum Drying Oven


XCH-ZK series high precision vacuum drying oven is suitable for heat treatment of electronic products under vacuum condition, such as defoaming, dehydration, hardening and drying after clean treatment,it is especially suitable for fast and efficient drying of drying heat sensitive articles.Widely used in electronic products and biochemistry, chemical pharmaceutical, medical, agriculture, environmental protection and other research and application fields.



Key Features:


Specifications:

Constant temperature fluctuation: ±1℃

Temperature accuracy: 0.1℃
Power: AC220V±10% 50HZ

Vacuum Degree: vacuum indicator display


Structure & Material:

Adopt the aluminum shelf made by special stamping process,It has the advantages of no oxidation at high temperature, fast heat conduction and low heat loss


The liner is made of thickened stainless steel plate,the out shell is made of high quality cold rolled steel plate sprayed with plastic


Microcomputer temperature controller,Temperature control is accurate and reliable


Double glass observation window facilitate observation of samples inside the box


Monolithic formed silicone rubber door sealing ring ensures high vacuum inside chamber


Model & Parameters:

MODEL TEMP RANGE CAPACITY(L) INTER DIMEN
W×D×H
EXTER DIMEN
W×D×H
POWER(KW) SHELF(STANDARD) REMARK
XCH-6050ZK  RT+10℃ ~ 200℃ 50L 415×370×345(mm) 710×560×550(mm) 1.1KW 2 Without vacuum pump
XCH-6090ZK RT+10℃ ~ 200℃ 90L 450×450×450(mm) 610×680×1460(mm) 1.7KW 2 vacuum pump Two layers, independent TEMP control
XCH-6210ZK RT+10℃ ~ 200℃ 210L 560×600×640(mm) 720×820×1750(mm) 2.0KW 3 vacuum pump Three layers, independent TEMP control
XCH-6500ZK RT+10℃ ~ 200℃ 420L 630×810×840(mm) 790×1030×1860(mm) 3.6KW 4 vacuum pump Four layers, independent TEMP control


Contact Us Today:

Fast induction, small system error

Safe and easy to operate
High temperature uniformity
High precision sensing, good insulation
Low cost, Fast shipping
