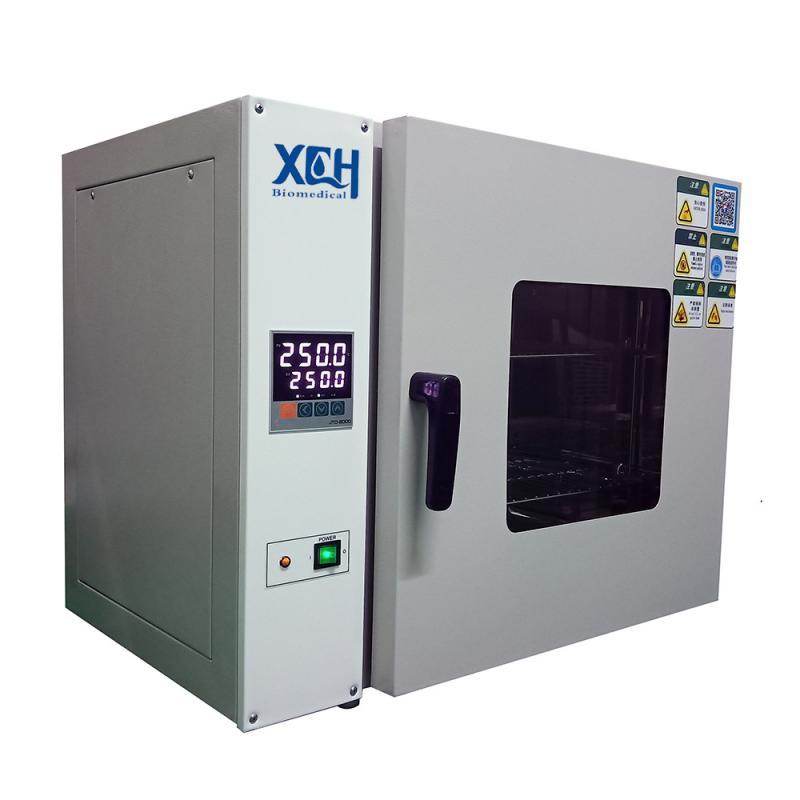

Electric Thermostatic Air Drying Oven are widely used in various industries, research and laboratories for simple applications. It ensures temperature stability and reproducibility to meet all your required application requirements.
Model: 9075A-9925A
Temp.Range: RT+10℃～300℃
Environment temperature: +5 ～ 40℃
Temperature Fluctuation: ±1.0℃
Temperature Accuracy: ±0.1℃
Power: AC 220V±10% 50HZ
Timing range: 1-9999min
Item NO.:
9070A-9925AProduct Origin:
ChinaElectric Thermostatic Air Drying Oven
Electric Thermostatic Air Drying Oven, used for constant temperature storage, baking, biochemical, pharmaceutical, medical care, agriculture, environmental protection, disinfection, sterilization, drying, baking, laboratory, research, engineering, industry.
Also known as heating furnace, laboratory drying furnace
Key Features:
Specifications:
Constant temperature fluctuation: ±1℃
Temperature accuracy: 0.1℃
Timing Range: 1-9999min;
Power: AC 220V±10% 50HZ
Stucture & Material:
The box is made of mirror stainless steel by argon arc welding, and the outside of the box is made of high quality steel plate.
Adopt microcomputer P.I.D. temperature controller with overtemperature deviation protection digital display, with timing function, accurate and reliable temperature control.
The hot air circulation system is composed of a fan that can run continuously at high temperature and suitable air duct to improve the temperature uniformity in the working room.
Using the new synthetic silicon seal strip, can operate at high temperature for a long time, long service life, easy to replace.
Optional:
Independent temperature limit alarm system will automatically stop when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents.
Model & Parameters:
|
Name |
MODEL(XCH) | TEMP RANGE(℃) | CAPACITY(L) | INTER DIMEN W×D×H |
EXTER DIMEN W×D×H |
POWER(KW) | TRAYS |
|
Electric
Thermostatic
Air Drying
Oven |
XCH-9070A |
RT+10 ～ 250 |
70L |
450×400×450(mm) |
740×618×630(mm) |
1.0 |
2 |
|
XCH-9140A |
RT+10 ～ 250 |
140L |
550×450×550(mm) |
840×670×730(mm) |
1.5 | 2 | |
|
XCH-9240A |
RT+10 ～ 250 |
240L |
600×500×750(mm) |
880×720×930(mm) |
2.5 | 2 | |
|
XCH-9420A |
RT+10 ～ 250 |
420L |
640×585×1355(mm) |
780×750×1880(mm) |
3.1 | 3 | |
|
XCH-9620A |
RT+10 ～ 250 |
620L |
780×600×1355(mm) |
980×800×1880(mm) |
4.0 | 4 | |
|
XCH-9920A |
RT+10 ～ 250 |
1000L |
1000×600×1600(mm) |
1140×800×2150(mm) |
5.2 | 4 | |
|
Electric Thermostatic Air Drying Oven |
XCH-9075A | RT+10℃ ～ 300 | 70L | 450×400×450(mm) | 740×618×630(mm) | 1.0 | 2 |
| XCH-9145A | RT+10℃ ～ 300 | 140L | 550×450×550(mm) | 840×670×730(mm) | 1.5 | 2 | |
| XCH-9245A | RT+10℃ ～ 300 | 240L | 600×500×750(mm) | 880×720×930(mm) | 2.5 | 2 | |
| XCH-9425A | RT+10℃ ～ 300 | 420L | 640×585×1355(mm) | 780×750×1880(mm) | 3.1 | 3 | |
|
XCH-9625A |
RT+10℃ ～ 300 |
620L |
780×600×1355(mm) |
980×800×1880(mm) |
4.0 | 4 | |
| XCH-9925A |
RT+10℃ ～ 300 |
1000L |
1000×600×1600(mm) |
1140×800×2150(mm) |
5.2 | 4 |
Remarks:9070A-99220A are using within 220℃, 9075A-9925A are using within 270℃.
Application:
Electric thermostatic hot air drying oven, also a good laboratory drying oven, always used in thermostat storage, Baking, Biochemical, Pharmaceutical, Healthcare, Agricultural, Environmental protection, Disinfection, Sterilization, Drying, Roasting, Laboratory, Research, Engineering, Industry.
Our Services:
Customization/OEM
Rich experience
Fast responce
Remote technical guidance
Want to know about this product?
If you are interested in our products and want to know more details, please leave a message here,we will reply you as soon as we can.
