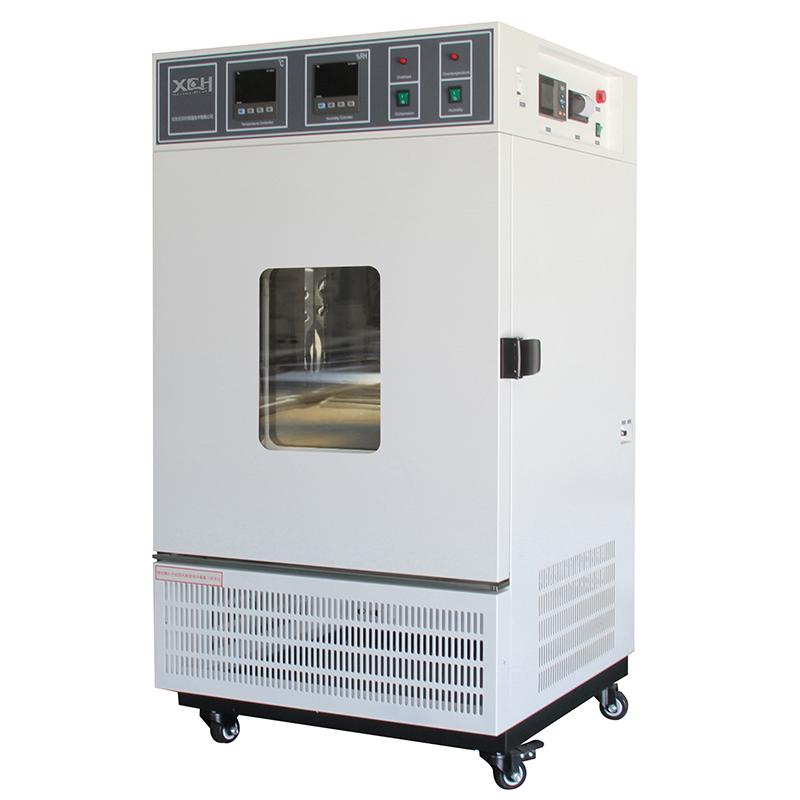

Constant Temperature and Humidity Test Chamber

Constant temperature and humidity test chamber(also called climatic test chambers or humidity and temperature controlled test chamber) simulate and provide different natural environments like high temperature, low temperature, moisture, cold, hot for steady-state stability testing, basic temperature cycling and accelerated


Model: 150CH~500CH

Temp.Range: 10℃~60℃
Humi.Range: 50~90%RH
Environment temperature: +5 ~ 35℃

Temperature Fluctuation: <±0.5℃

Temperature deviation: <±2.0℃
Humidity deviation: < ±5%RH

Power: AC 220V±10% 50HZ

  • Item NO.:

    150CH~1000CH
  • Product Detail

Constant Temperature and Humidity Test Chamber


The constant temperature and humidity chamber is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature alternating hot and humid environment when storage, transport and using.


Key Features:

Specifications:

Installed Power: AC220V±10% 50HZ

Environment temperature: +5~35℃


Temperature Fluctuation ≤ ±0.5℃

Temperature Deviation < ±2.0℃

Temperature Uniformity ≤ 2.0℃

Humidity Fluctuation ≤ ±3%RH

Humidity Deviation ≤ ±5%RH

Humidity Uniformity ≤ 5%RH


SMS alarm : Optional

Data record: Optional


Sturcture&Material
Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.



Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.


Refrigerating System: The imported brand fully enclosed compressor,long-term use ,stable performance.


Humidity System: Original imported chip capacitive humidity sensor,High sensitivity, low annual drift, direct humidity detection


Control System: The imported temperature and humidity controller, High control accuracy.


Safety Device:

Compressor overheat protection and overload protection、Fan overheating protection、Water scarcity protection


Dual protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply;


Live Alarm: Temperature and humidity upper and lower limit deviation alarm;Independent overtemperature protection alarm system.


Model & Parameters:

MODEL TEMP CONTROL RANGE Humidity control range
CAPACITY INTER DIMEN
W×D×H
EXTER DIMEN
W×D×H
POWER TRAYS
XCH-150CH 10℃ ~ 60℃ 50 ~ 90%
150L 600×405×630(mm) 760×830×1480(mm) 0.4KW 2
XCH-250CH 10℃ ~ 60℃ 50 ~ 90%
250L 600×500×830(mm) 760×870×1650(mm) 0.6KW 3
XCH-400CH 10℃ ~ 60℃ 50 ~ 90%
400L 600×700×950(mm) 760×1060×1750(mm) 0.8KW 3
XCH-500CH 10℃ ~ 60℃ 50 ~ 90%
500L 680×680×1080(mm) 840×1050×1850(mm) 1.1KW 4
Single door constant temperature and humidity chamber


Advantages:

Sensitive, small system error
Independent over-temperature protection alarm system
High control accuracy
Low cost, Quality Assurance



Want to know about this product?

SEND A MESSAGE

If you are interested in our products and want to know more details, please leave a message here,we will reply you as soon as we can.
