Constant Tmperature Test Chamber

Constant temperature test chamber, Cutting-edge equipment for a variety of testing applications, including those related to analytical testing, pharmaceutical testing, thermal characterization, food storage testing, and more.


Model: 150CT-500CT

Temp.Range: 10℃~100℃

Temperature Fluctuation: <±0.5℃

Temperature deviation:<±1.0℃

Humidity deviation:<±3%RH(control humidity>75%RH), <±5%RH(control humidity≤75%RH)

Power: AC 220V±10% 50HZ

  • Item NO.:

    150CT-500CT
  • Product Detail

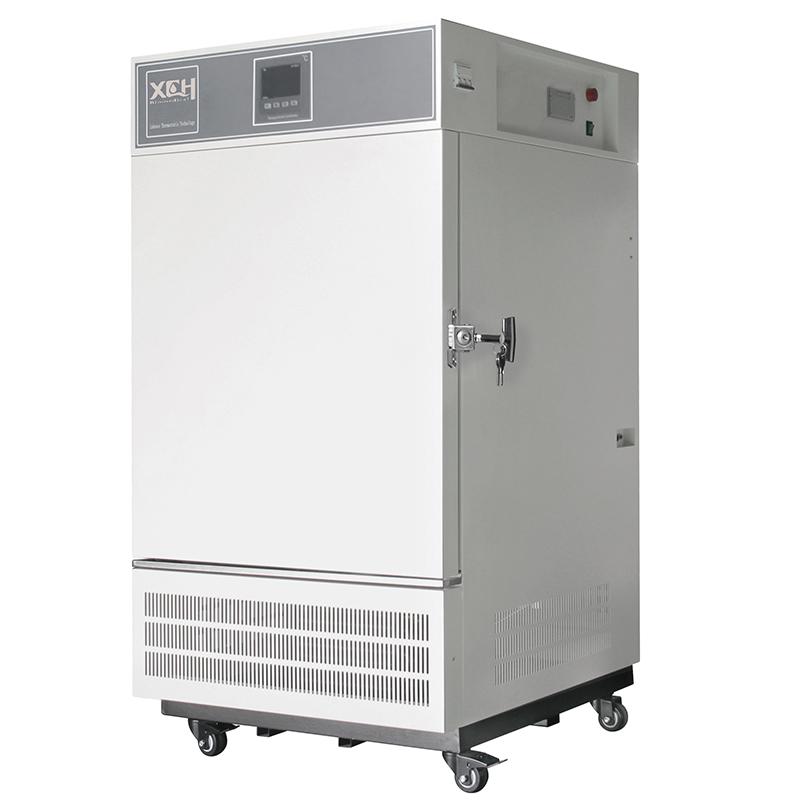

Constant temperature test chamber


The constant temperature test chamber is a reliable and efficient environmental test chamber that meets the test requirements. Also a high and low temperature test chamber, 10℃~100℃. The PLC controller can accurately control the constant temperature and humidity level through simple operations.Suitable for high temperature damage test of medicine and temperature resistance test of packaging materials.

Application industry (not limited to the following):
1. Electronics, electrical, mobile, data
2. Communications, instrumentation, auto parts
3. Plastic products, metals, food
4. Chemistry, building materials, medical
5. Use quality inspection of space and other products


Key Features:


Specifications:

Temperature Fluctuation< ±0.5℃

Temperature Deviation<±1.0℃

Uniformity ≤ 2.0℃
Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃


Structure&Material:


Adopt the latest airduct system design achieves good uniform of temperature form different parts inside the chamber.
The liner is made of thickened stainless steel plate,the out shell is made of high quality cold rolled steel plate sprayed with plastic
The imported brand fully enclosed compressor, long-term use, stable performance
The original imported temperature controller, High temperature control accuracy.


Safety Device:

Compressor overheat protection and overload protection;Fan overheating protection;Temperature and humidity upper and lower limit deviation alarm;Independent overtemperature protection alarm system.


Model & Parameters:


MODEL TEMP CONTROL RANGE Humidity control range
CAPACITY INTER DIMEN
W×D×H
EXTER DIMEN
W×D×H
POWER TRAYS
XCH-150CT 10℃ ~ 100℃ 20 ~ 95%
150L 600×405×620(mm) 760×830×1480(mm) 1.2KW 3
XCH-250CT 10℃ ~ 100℃ 20 ~ 95%
250L 600×500×830(mm) 760×870×1650(mm) 1.5KW 3
XCH-400CT 10℃ ~ 100℃ 20 ~ 95%
400L 600×700×950(mm) 760×1060×1750(mm) 2.0KW 3
XCH-500CT 10℃ ~ 100℃ 20 ~ 95%
500L 680×680×1070(mm) 840×1050×1850(mm) 2.2KW 4
Single door constant temperature test chamber


Advantages:

Sensitive, small system error
Programmable color touch screen controller
No pollution source and is easy to clean
Low cost High performance and quiet operation

thchamber factory


shipping of thchamber
