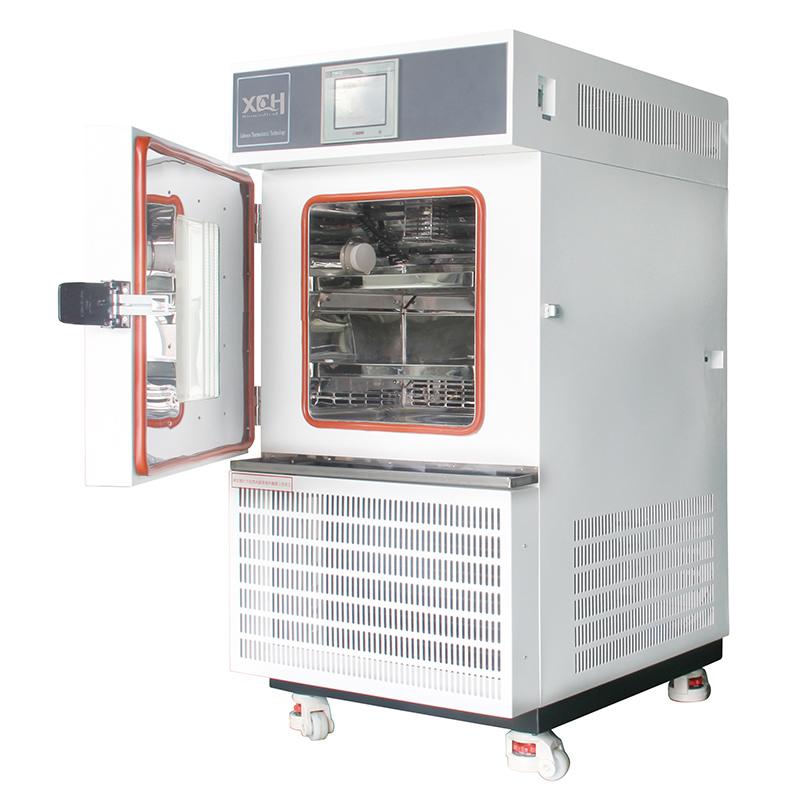

High and Low Temperature Test Climatic Chamber

The High and Low Temperature Test Climatic Chamber used for adaptability test of electrical and electronic products, components and materials in storage, transportation and use under high temperature and low temperature environment.


Model: 100GDB-1000GDB

TEMP Range: -40~150℃

Temperature Fluctuation < ±0.5℃

Temperature Deviation < ±2.0℃
Heating Rising Rate: 1 ~ 3℃ /Min

Cooling Fall Rate: 0.7 ~1℃ /Min
Environment temperature: +5 ~ 35℃
Power: AC220V±10% 50HZ



  • Item NO.:

    100GDB-1000GDB
  • Product Origin:

    China
  • Product Detail

High and Low Temperature Test Climatic Chamber


The High and Low Temperature Test Chamber used for adaptability test of electrical and electronic products, components and materials in storage, transportation and use under high temperature and low temperature environment. It is widely used to test the thermal properties of various products and components.


Key Features:


Specification:


Temperature Fluctuation < ±0.5℃

Temperature Deviation < ±2.0℃

Heating Rising Rate: 1 ~ 3℃ /Min

Cooling Fall Rate: 0.7 ~ 1℃ /Min

Environment temperature: +5 ~ 35℃

Power: AC220V±10% 50HZ


Stucture&Material:


Airduct System: Adopt the latest airduct system design achieves good uniform of temperature form different parts inside the chamber.


Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304


Refrigeration System: The imported fully enclosed industrial compressor, high efficiency, low noise, stable continuous operation.


Control system: Programmable chromatic touch screen controller,With multi - segment program and constant value function.


Data management: With electronic data storage function,Data can be exported by USB flash drive.


Safety Device:

Compres or overheat protection and overload protection,Fan overheating protection,overtemperature protection alarm.


Sound-light alarm: Temperature upper and lower limit deviation alarm.


Model & Parameters:


MODEL TEMP CONTROL RANGE( ℃ ) CAPACITY(L) INTER DIMEN
W×D×H(mm)
EXTER DIMEN
W×D×H(mm)
Shelf (Standard) REMARK
XCH-100GDB -40 ~ 150 100  450×450×500  680×1040×1570 2 Customized for different TEMP ranges
XCH-250GDB
-40 ~ 150
250 600×600×700
1100×1000×1900
2
XCH-500GDB
-40 ~ 150
500 800×700×900
1280×1180×2000
3
XCH-1000GDB -40 ~ 150 1000 1000×1000×1000 1500×1500×2200 4


Common sense of use of high and low temperature test box

The enclosure of the high-low test box must be grounded during installation. If the high and low temperature test box is not grounded, there is a danger of electric shock due to leakage.

Do not run the high and low temperature test chamber before installation, and make sure that the installation is reliable before performing the test.

If the heated sample is placed in the test box, please use the external power supply as the sample control power supply, and do not use the power supply of this test box directly.

Operating the cabinet will generate dangerous current, non-professionals should not open the cover of the electric control cabinet.

When reading the instructions, pay attention to the difference between use and requirements.

When the test box is running, under the control of the controller, various motors and fans are started according to the instructions.

Do not touch the components that are temporarily in a static state with your hands to avoid personal injury caused by the sudden start of the components. If it is really necessary to approach the rotating parts, please cut off the main power switch when working on site to ensure that the protection device is in good condition.

It is forbidden to move the test box when there is a sample in the test box, otherwise the sample may be reversed or dropped.
